HPD400 Series
4ch High Performance DVR


  • High Stability and Reliability
  • Simultaneously Records Eight Channels of Real Time, High Resolution Video & Audio
  • Pentaplex: Recording, Monitoring, Playback, Remote Monitoring & Archive Video Simultaneously.
  • Four Channels Record and Playback in High Quality Resolution (720 x 480)
  • Simultaneously Records and Playback in Real Time (720 x 480: 120 FPS)
  • Network viewing of Live and Recorded Video & Audio
  • Long-time Internal Recording
  • Easy Operating & Reliable External Archiving
  • Higher Level of Authentication

The HPD400 recorder delivers high quality, real time digital video recording even when using all four channels. Its five MPEG-4 compression engines provide clear, high resolution video and audio, while optimizing hard disk space.

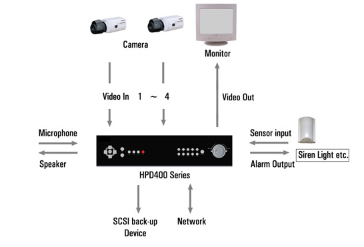

The HPD 400 recorder complements any existing system. Its four contact alarm inputs, motion detection, and one-touch record button make it ideal for recording.

With simultaneous Recording, Monitoring, playback Remote Monitoring & Archive Video, all controlled from the front panel, the HPD400is the perfect spot monitor recorder to enhance an existing analog system.

The HPD400 can record up to around 7 days of continuous real time video on all four channels.

Total recording time can be expanded ad optimized by connecting optional digital storage arrays, or configuring a combination of four quality settings, and built -in scheduler.



HPD 400 Series

Description Specification
Compression Algorithm M-JPEG
Video Input 4 Ch inputs, NTSC/PAL, composite video, 1V p-p, 75 Ohm, BNC
Video Output Composite 2EA (1.0Vp-p 75 Ohm BNC)
/S-Video 1EA (Y:1.0V p-p, C: 0.286V p-p) 4ch Loop Out
Audio Input 4Ch L/R (mono RCA Jack), 44.1KHZ Sampling Rate
Audio Output 1Ch Mono -5dB RCA Jack
Display Resolution NTSC 720 x 480, 720 x 240, 352 x 240
PAL 720 x 576, 720 x 288, 352 x 288
Recording Resolution NTSC 720 x 480, 720 x 240, 352 x 240
PAL 720 x 576, 720 x 288, 352 x 288
Operating Mode Pentaplex: Recording, Monitoring, Play Back, Remote Monitoring & Archive Video Simultaneously
Recording Frame Rate 120 FPS (720 x 480 / NTSC), 100FPS (720 x 576 / PAL)
Display Frame Rate 120 FPS (720 x 480 / NTSC), 100FPS (720 x 576 / PAL)
Password Protection Front panel password protection
Verifies users, and permits those allowed to access the system
Alarm Selectable recording frame rate, Selectable NO / NC
Network 10/100 Base-T, RJ-45, IEEE802.3U, DHCP (Dynamic IP)
HDD Basic 2 HDD (Max 300GB x 2)
HDD Management HDD Type: Ultra DMA IDE, 3.5 inch
Mirroring Pre-formatting not required (Automatic formatting by the system)
(No loss of data by FAT breakage / Efficient: HDD space increased)
Data storing in sequence (Not decrease HDD lifetime)
External: RAID5 / Internal: RAID1 (Optional)
Authentication Higher Level of Authentication
Motion Detect Sensitivity (Level 1-5), Full Screen
Schedule Recording Weekly Recording: Week Select Time Select
Easy & User Friendly Interface Graphic OSD Setup Menu
O/S Embedded Linux
External Port 4CH Alarm Input, 4CH Trigger Output, 1 Serial I/O Port (rS232 Terminal), SCSI Connector DB-50, Narrow, Single-Ended
Remote Control Live Monitoring, Search & Archive, Camera Control and Adjustment
External Archiving Ultra SCSI 2 and Backward Compatible
USB 2.0 port (Future Function)
Rack Size 2U
Power AC 110 / 230V, 50-60Hz
Ambient Temp. 0° to 40° C
Others Jog & Shuttle
Remote Update
Viewer Software
Time Synchronized via Ethernet Port

The Specifications are subject to change without prior notice for the products improvement.
