HQD1600 Series
16ch High Quality DVR

Features

  • High Stability and Reliability
  • Simultaneously Records Sixteen Channels of Real Time, High Resolution Video & Audio
  • Pentaplex: Recording, Monitoring, Playback, Remote Monitoring & Archive Video Simultaneously.
  • Sixteen Channels Record and Playback in High Quality Resolution (352 x 240)
  • Simultaneously Records and Playback in Real Time (352 x 240: 480 FPS)
  • Network viewing of Live and Recorded Video & Audio
  • Long-time Internal Recording
  • Easy Operating & Reliable External Archiving
  • Higher Level of Authentication

The HQD1600 recorder delivers high quality, real time digital video recording even when using all sixteen channels. Its nine MPEG-4 compression engines provide clear, high resolution video and audio, while optimizing hard disk space.

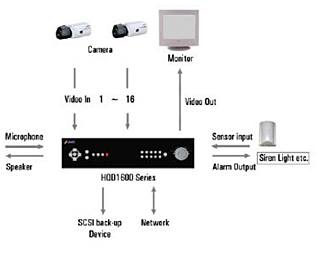

TheHQD1600 recorder complements any existing system. Its nine contact alarm inputs, motion detection, and one-touch record button make it ideal for event recording.

With simultaneous Recording, Monitoring, Playback, Remote Monitoring & Archive Video, all controlled from the front panel, the HQD1600 is the perfect spot monitor recorder to enhance an existing analog system.

The HQD1600 can record up to around 7days of continuous real time video on all sixteen channels.

Total recording time can be expanded ad optimized by connecting optional digital storage arrays, or configuring a combination of four quality settings, and built -in scheduler.





HQD1600

Description Specification
Compression Algorithm M-JPEG
Video Input 16 Ch inputs, NTSC/PAL, composite video, 1V p-p, 75 Ohm, BNC
Video Output Composite 2EA (1.0Vp-p 75 Ohm BNC)
/S-Video 1EA (Y:1.0V p-p, C: 0.286V p-p) 8ch Loop Out
Audio Input 4Ch L/R (mono RCA Jack), 44.1KHZ Sampling Rate
Audio Output 1Ch Mono -5dB RCA Jack
Display Resolution NTSC 720 x 480, 720 x 240, 352 x 240
PAL 720 x 576, 720 x 288, 352 x 288
Recording Resolution NTSC 720 x 480, 720 x 240, 352 x 240
PAL 720 x 576, 720 x 288, 352 x 288
Operating Mode Pentaplex: Recording, Monitoring, Play Back, Remote Monitoring & Archive Video Simultaneously
Recording Frame Rate 480 FPS (352 x 240/ NTSC), 400FPS (352 x 298/ PAL)
Display Frame Rate 480 FPS (352 x 240/ NTSC), 400FPS (352 x 298/ PAL)
Password Protection Front panel password protection
Verifies users, and permits those allowed to access the system
Alarm Selectable input recording speed
Network 10/100 Base-T, RJ-45, IEEE802.3U, DHCP (Dynamic IP)
HDD Basic 2 HDD (Max 300GB x 2)
HDD Management HDD Type: Ultra DMA IDE, 3.5 inch
Mirroring Pre-formatting not required (Automatic formatting by the system)
(No loss of data by FAT breakage / Efficient: HDD space increased)
Data storing in sequence (Not decrease HDD lifetime)
External: RAID5 / Internal: RAID1 (Optional)
Authentication Higher Level of Authentication
Motion Detect Sensitivity (Level 1-5), Full Screen
Schedule Recording Weekly Recording: Week Select Time Select
Profile Channel, Time, Event Type Power State, System Operation
Easy & User Friendly Interface Graphic OSD Setup Menu
O/S Embedded Linux
External Port 16CH Alarm Input, 9CH Trigger Output, 1 Serial I/O Port (rS232 Terminal), SCSI Connector DB-50, Narrow, Single-Ended
Remote Control Live Monitoring, Search & Archive, Camera Control and Adjustment
External Archiving Ultra SCSI 2 and Backward Compatible
USB 2.0 port (Future Function)
Rack Size 2U
Power AC 110 / 230V, 50-60Hz
Ambient Temp. 0° to 40° C
Others Jog & Shuttle
Remote Update
Viewer Software
Time Synchronized via Ethernet Port

The Specifications are subject to change without prior notice for the products improvement.
